Product Name： CKDJ Quarter-turn Series
Release Date： 2018-09-27
Hits： 4154
Two Dimensional Code：
Description：
Product Details
Description:

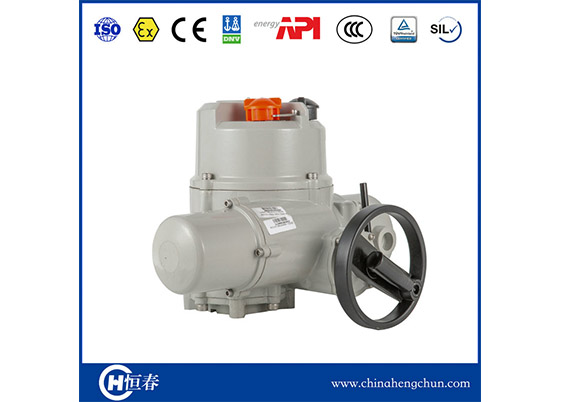

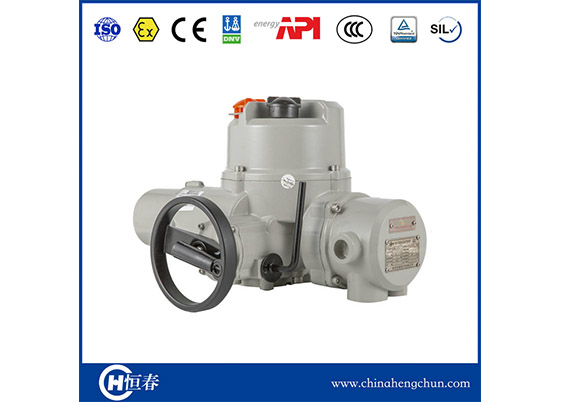

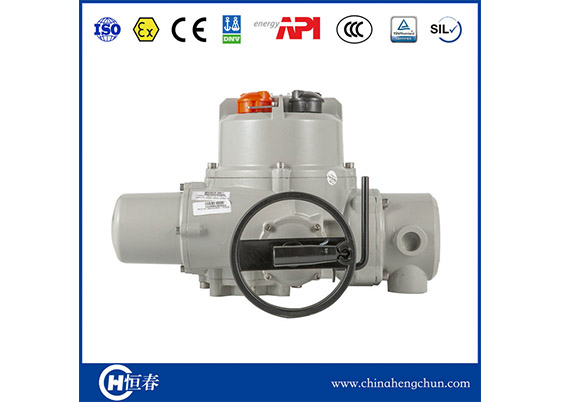

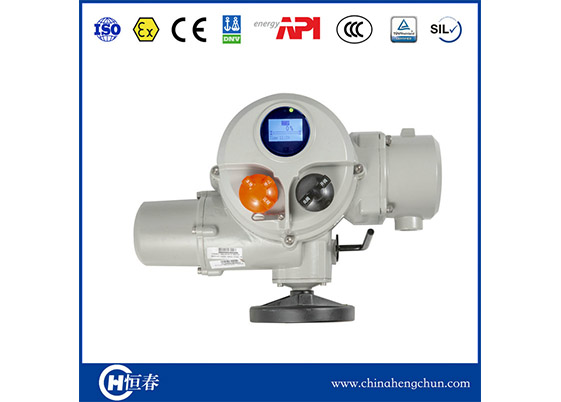

1. Product Name: CKDJ Series integral Quarter-Turn Electric Actuator
2. Power Supply: Single Phase or Three Phase, Voltage: 220V/230V/380V/415V/460V, Frequency: 50/60 Hz
3. Material: Aluminum Casting/Ductile Iron Casting
4. Type: On-off Type, Regulating Type, Field Bus
5. Torque Range: 40-1,000 N.m
6. Motor Insulation Class: Class F, Class H can be customized
7. Protection Grade: IP 68
8. Explosion Proof Protection: Exd IIA/IIB/IIC T4
9. Cable Inlet: Normal- 1 M48*2, 2 M33*2; Explosion Proof- 1 x 1"NPT, 2x3/4"NPT (Suitable cable entry will be provided for redundant BUS.
10. Environmental Temperature: -30 ℃-70℃(Standard),Maximum 150℃ ,while Minimum -50 ℃
11. Coating: Phosphoric acid pickling,Surface electrostatic spray
12. Joint Type: Flange, comply with ISO 5211
13. Certification: ATEX, SIL 3, CE, etc
14. Application: Ball Valve, Butterfly Valve, Plug Valve, etc.
1. Product Name: CKDJ Series integral Quarter-Turn Electric Actuator
2. Power Supply: Single Phase or Three Phase, Voltage: 220V/230V/380V/415V/460V, Frequency: 50/60 Hz
3. Material: Aluminum Casting/Ductile Iron Casting
4. Type: On-off Type, Regulating Type, Field Bus
5. Torque Range: 40-1,000 N.m
6. Motor Insulation Class: Class F, Class H can be customized
7. Protection Grade: IP 68
8. Explosion Proof Protection: Exd IIA/IIB/IIC T4
9. Cable Inlet: Normal- 1 M48*2, 2 M33*2; Explosion Proof- 1 x 1"NPT, 2x3/4"NPT (Suitable cable entry will be provided for redundant BUS.
10. Environmental Temperature: -30 ℃-70℃(Standard),Maximum 150℃ ,while Minimum -50 ℃
11. Coating: Phosphoric acid pickling,Surface electrostatic spray
12. Joint Type: Flange, comply with ISO 5211
13. Certification: ATEX, SIL 3, CE, etc
14. Application: Ball Valve, Butterfly Valve, Plug Valve, etc.
