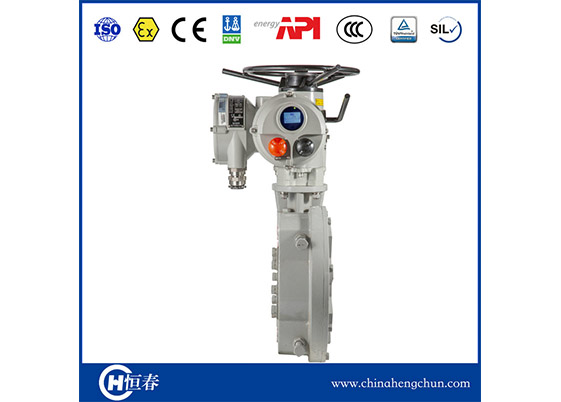

CKD Multi-turn Electric Actuator + Quarter-turn Gearbox
Product Details
Description:
Product Name: CKD Multi-turn ElectricActuator + Quarter-turnGearbox
Power Supply: Single Phase or Three Phase, Voltage: 220V/230V/380V/415V/460V, Frequency: 50/60 Hz
Material: Aluminum Casting/Ductile Iron Casting
Type: On-off Type, Regulating Type, Field Bus
Torque Range: 1000 -600,000 N.m(With Gearbox)
Motor Insulation Class: F Class, H Class can be customized
Protection Grade: IP 68
Explosion Proof Protection: Exd IIA/IIB/IIC T4
Cable Inlet: Normal- 1 M48*2, 2 M33*2; Explosion Proof- 1 x1.5"NPT,2 x 1"NPT (Suitable cable entry will be provided for redundant BUS.
Environmental Temperature: -30 ℃-70℃(Standard),Maximum 150℃ ,while Minimum -50 ℃
Coating: Phosphoric acid pickling,Surface electrostatic spray
Joint Type: Flange, comply with ISO 5210
Certification: ATEX, SIL 3, CE, etc
Application: Ball Valve, Butterfly Valve, Plug Valve, etc.
