Product Name： CKD Multi-turn Series
Release Date： 2018-09-27
Hits： 4758
Two Dimensional Code：
Description：
Product Details
Description:

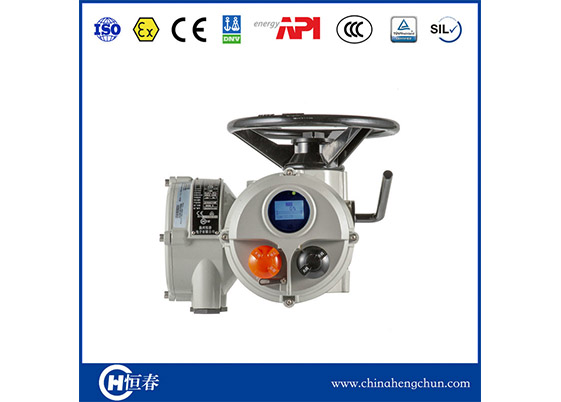

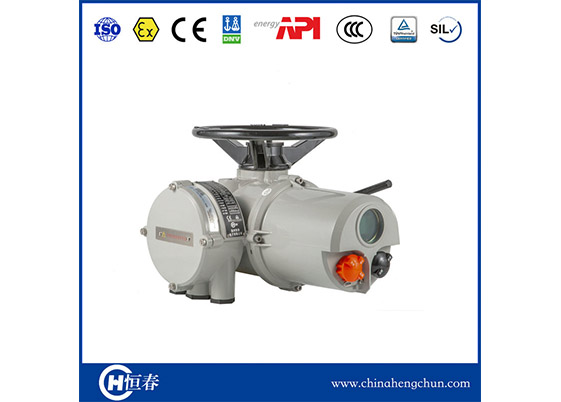

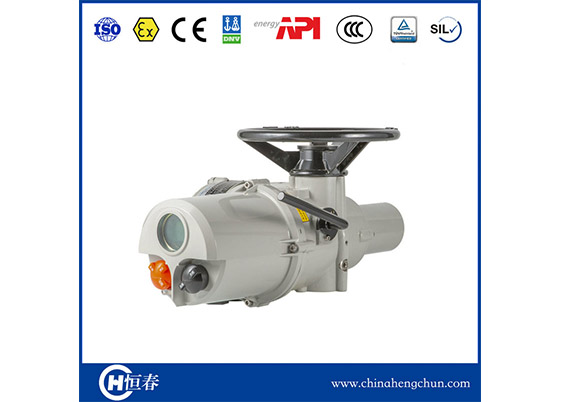

1. Product Name: CKD Series Multi-Turn Electric Actuator
2. Power Supply: Single Phase or Three Phase, Voltage: 220V/230V/380V/415V/460V, Frequency: 50/60 Hz
3. Material: Aluminum Casting/Ductile Iron Casting
4. Type: On-off Type, Regulating Type, Field Bus
5. Torque Range: 40-3,000 N.m, Maximum 50,000 N.m(With Gearbox)
6. Motor Speed: 18-144 rpm, 192 rpm can be customized
7. Motor Insulation Class: Class F, Class H can be customized
8. Protection Grade: IP 68
9. Explosion Proof Protection: Exd IIA/IIB/IIC T4
10. Cable Inlet: Normal- 1 M48*2, 2 M33*2; Explosion Proof- 1 x1.5"NPT,2 x 1"NPT (Suitable cable entry will be provided for redundant BUS.
11. Environmental Temperature: -30 ℃-～ +70℃(Standard),Maximum 150℃ ,while Minimum -50 ℃
12. Coating: Phosphoric acid pickling,Surface electrostatic spray
13. Joint Type: Flange, comply with ISO 5210
14. Certification: ATEX, SIL3, CE, etc
15. Application: Globe Valve, Gate Valve,etc.
1. Product Name: CKD Series Multi-Turn Electric Actuator
2. Power Supply: Single Phase or Three Phase, Voltage: 220V/230V/380V/415V/460V, Frequency: 50/60 Hz
3. Material: Aluminum Casting/Ductile Iron Casting
4. Type: On-off Type, Regulating Type, Field Bus
5. Torque Range: 40-3,000 N.m, Maximum 50,000 N.m(With Gearbox)
6. Motor Speed: 18-144 rpm, 192 rpm can be customized
7. Motor Insulation Class: Class F, Class H can be customized
8. Protection Grade: IP 68
9. Explosion Proof Protection: Exd IIA/IIB/IIC T4
10. Cable Inlet: Normal- 1 M48*2, 2 M33*2; Explosion Proof- 1 x1.5"NPT,2 x 1"NPT (Suitable cable entry will be provided for redundant BUS.
11. Environmental Temperature: -30 ℃-～ +70℃(Standard),Maximum 150℃ ,while Minimum -50 ℃
12. Coating: Phosphoric acid pickling,Surface electrostatic spray
13. Joint Type: Flange, comply with ISO 5210
14. Certification: ATEX, SIL3, CE, etc
15. Application: Globe Valve, Gate Valve,etc.
