Product Name: CKDM Linear Series

Release Date: 2018-09-27

Hits: 880

Two Dimensional Code:

Product Details

Description:

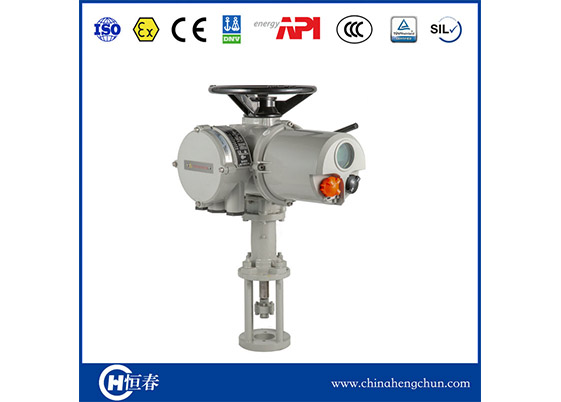

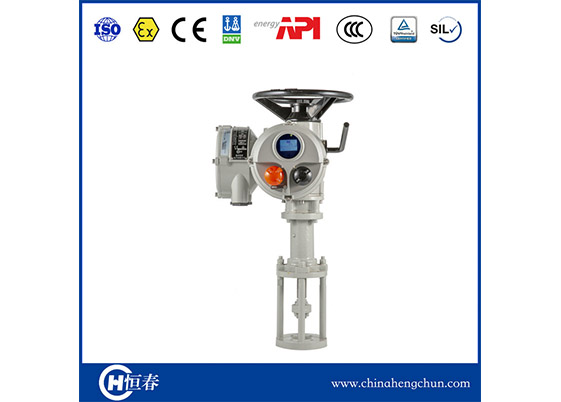

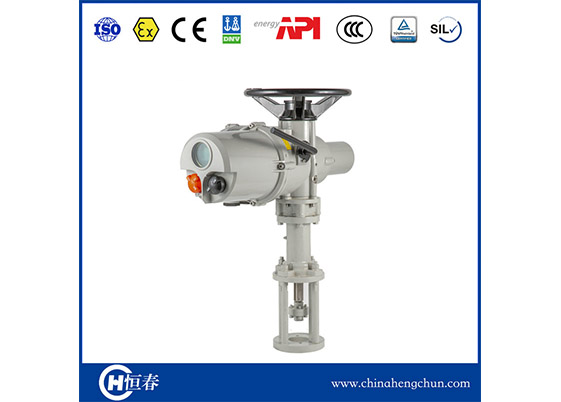

1. Product Name: CKDM Series Linear Electric Actuator
2. Power Supply: Single Phase or Three Phase, Maximum Voltage: 690 Volt, Frequency: 50/60 Hz
3. Material: Aluminum Casting/Ductile Iron Casting
4. Type: Regulating Type, Field Bus
5. Thrust Range: 1kN-100kN
6. Maximum Travel Distance: 250mm, can be customized
7. Linear Speed: from 1.6 to 6.4 mm/sec
8. Motor Insulation Class: F Class, H Class can be customized
9. Protection Grade: IP 68
10. Explosion Proof Protection: Exd II BT4/ CT4(some product can reach Exd II CT 6)
11. Cable Inlet: Normal- 1 M48*2, 2 M33*2; Explosion Proof- 1 * NPT 1.5",2 NPT 1"
12. Environmental Temperature: -30 ℃-70℃(Standard),Maximum 125 ℃ ,while Minimum -50 ℃
13. Coating: Phosphoric acid pickling,Surface electrostaic spray
14. Joint Type: Flange, comply with ISO 5211
15. Certification: ATEX, SIL 3, CE, etc
16. Application: Mainly for Control Valve to control the flow condition

No. Output Type CKD
Series
RPM Power Type Drive Screw Diameter
(mm)
Max. Linear
Travel (mm)
Thrust
(KN)
Linear Speed
(mm/sec)
Rated Close Thrust(KN) ISO Flange
1 Linear CKDM 4 24 380V/3PHASE/50HZ 24 x 4 100 4 1.6 8.2 F10
2 Linear CKDM 4 48 380V/3PHASE/50HZ 24 x 4 100 3 3.2 6.2 F10
3 Linear CKDM 10 24 380V/3PHASE/50HZ 26 x 5 100 10 2 22 F10
4 Linear CKDM 10 48 380V/3PHASE/50HZ 26 x 5 100 6.6 4 14 F10
5 Linear CKDM 16 24 380V/3PHASE/50HZ 26 x 5 150 16 2 33 F10
6 Linear CKDM 16 48 380V/3PHASE/50HZ 26 x 5 150 10.5 4 22 F10
7 Linear CKDM 25 24 380V/3PHASE/50HZ 32 x 6 150 25 2 52 F10
8 Linear CKDM 25 48 380V/3PHASE/50HZ 32 x 6 150 17 4 36 F10
9 Linear CKDM 40 24 380V/3PHASE/50HZ 36 x 6 250 40 2.4 85 F14
10 Linear CKDM 40 48 380V/3PHASE/50HZ 36 x 6 250 27 4.8 56 F14
11 Linear CKDM 60 24 380V/3PHASE/50HZ 36 x 6 250 60 2.4 125 F14
12 Linear CKDM 60 48 380V/3PHASE/50HZ 36 x 6 250 40 4.8 86 F14
13 Linear CKDM 100 24 380V/3PHASE/50HZ 38 x 8 250 100 3.2 230 F16
14 Linear CKDM 100 48 380V/3PHASE/50HZ 38 x 8 250 70 6.4 160 F16
